PCB Panelization Design - The Secret to Enhancing Efficiency and Cost Savings

Hello everyone, today we will delve into a crucial aspect of electronics manufacturing - PCB panelization design. This is not just a technical task but also a vital means of improving production efficiency and reducing costs.

I. Why is PCB Panelization Necessary?

After the completion of PCB design, we face the production processes of board making and component placement. Producing individual cards separately not only wastes material but also affects production efficiency. Therefore, panelization design has become a key step in enhancing production efficiency and cost savings.

1. Cost Savings in Production: Rational panelization can save on board material and reduce waste area, thereby lowering production costs.




2. Increased SMT Production Efficiency: The biggest bottleneck in SMT production lines is the solder paste printing process, and panelization can increase the number of components placed, improving the utilization rate of the placement machine and thus overall efficiency.




3. Saving Time for PCBA Handling: Panelization design can also save time in handling PCBAs, as it allows for the simultaneous handling of multiple boards, which is very convenient for subsequent board testing and transportation.

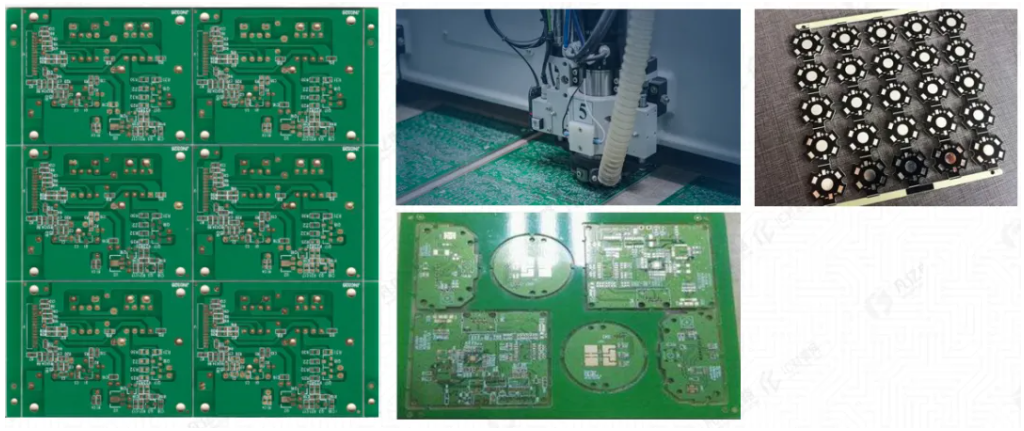

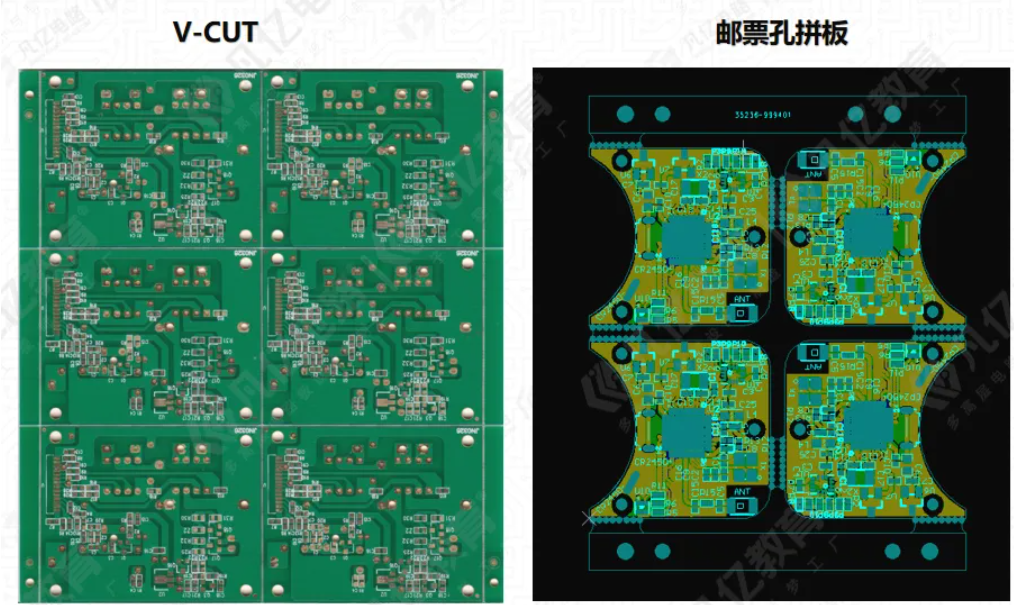

II. Common Types of Panelization

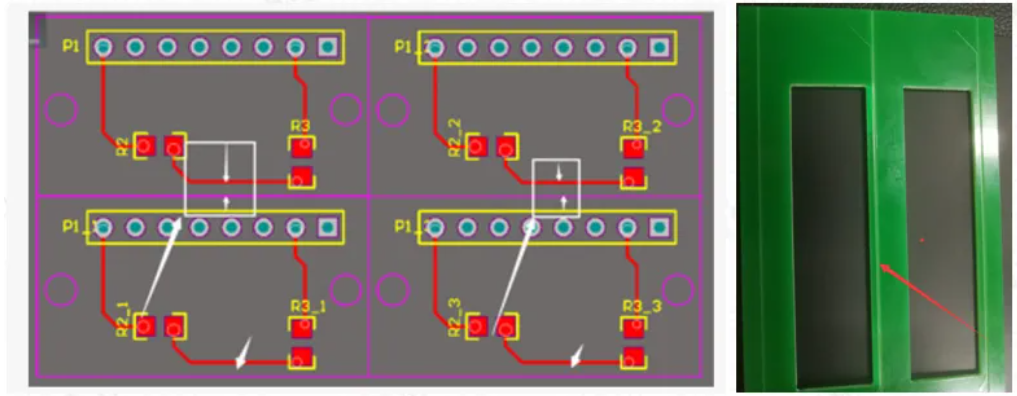

V-CUT Panelization: V-CUT, or V-shaped cutting, is a commonly used method of panelization. It involves cutting V-shaped grooves on the boards, allowing PCBs to be easily broken apart. However, it should be noted that V-CUT can only follow straight lines and cannot turn corners.

Precautions:

1. Lines and pads should maintain a distance of 0.4mm from the outline.

2. V-cut edges have grooves, so it is particularly important to note that panelization should avoid using V-cuts.

3. The length of V-cuts should preferably not be less than 7cm.

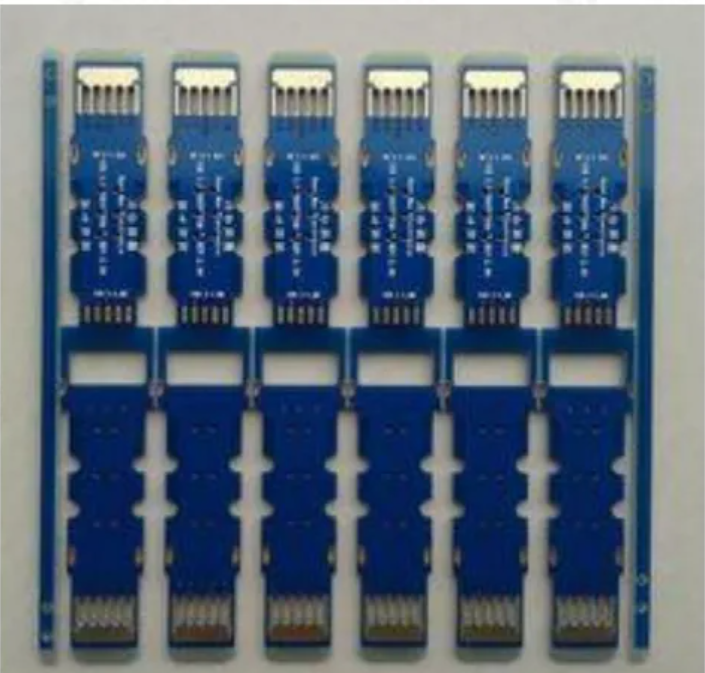

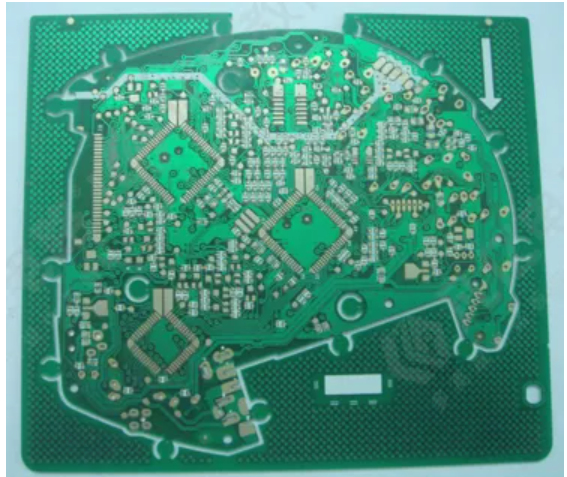

Stamp Hole Panelization: Stamp hole panelization involves punching small holes at the board separation points, facilitating the operation of separation tools. This method is suitable for irregular boards and can improve the precision and safety of board separation.

Precautions:

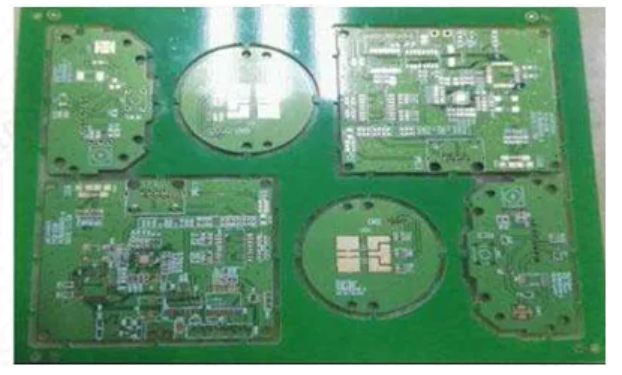

1. Stamp holes are often used for irregular or circular board panelization.

2. The position of stamp holes should be at least 0.5mm away from components and traces on the board.

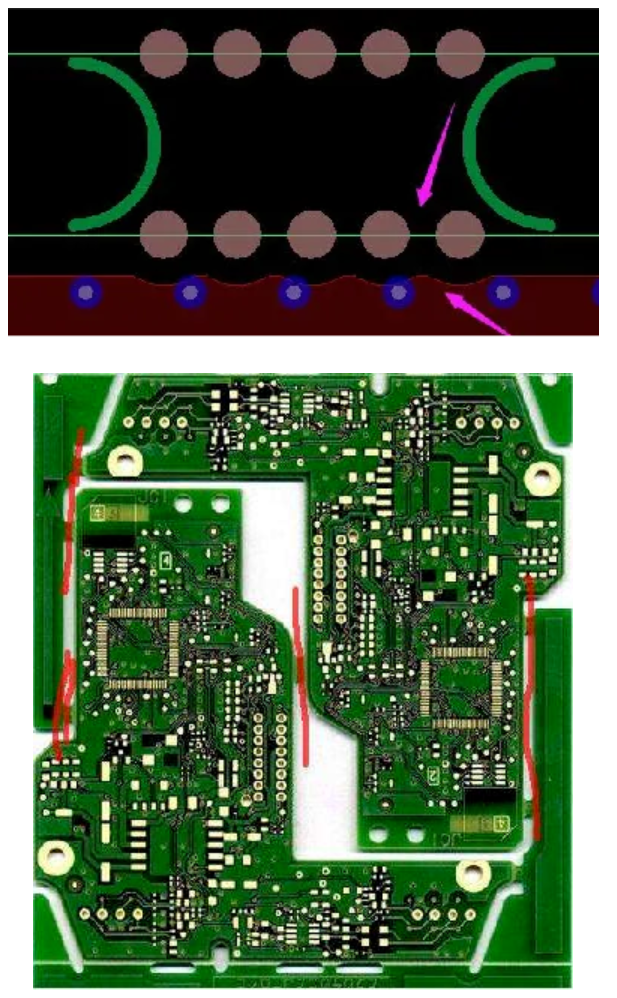

Generally, stamp holes use non-plated holes with a diameter of 0.8mm, with a center-to-center distance of about 1.1mm between holes, and it is advisable to have about 5 holes.

Yin-Yang Panelization: Yin-Yang panelization is a special method of panelization that maximizes the efficiency of SMT production lines by using layouts that are reversed on the front and back or left and right.

Why Use PCB Yin-Yang Panelization?

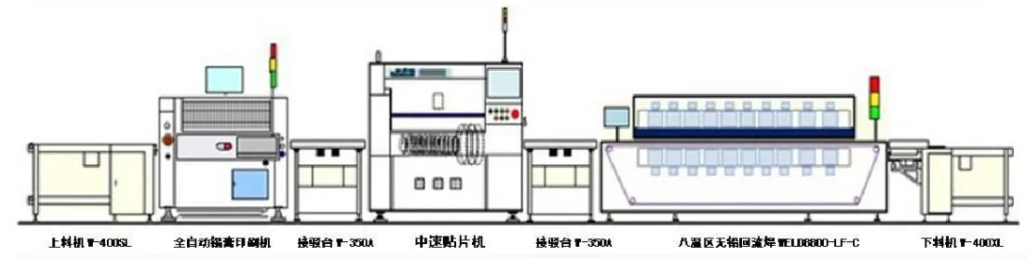

1. It can fully utilize the advantages of SMT long lines to achieve greater placement efficiency.

2. It reduces machine idle time and improves the overall efficiency of the SMT line.

Conclusion:

PCB panelization design is not just a technical task; it is also an important means of improving production efficiency and reducing costs. Through rational panelization design, we can reduce costs and increase efficiency in the electronics industry, achieving higher economic benefits.
